Relief Tent Layout Guide: How to Plan Space for Accommodation, Medical, and Storage

When a disaster strikes, getting relief tents up quickly is only half the job. The other half is making sure each shelter fits its purpose — a 12-square-metre tent meant for four people can feel cramped if beds, personal storage, and walkways are not planned. This guide walks through how to lay out relief tents for different uses, what sizes to choose, and what to confirm before ordering.

Whether you are setting up a refugee camp, a field medical post, or an emergency storage area, the layout decisions you make before deployment determine how well the camp functions day to day. A well-planned relief tent layout reduces overcrowding, improves safety, and makes daily operations smoother for everyone. Humanitarian shelter workers consistently find that 30 minutes of layout planning before setup saves hours of reorganisation later.

Four Main Uses for Relief Tents

Most relief shelters fall into one of four categories. Each needs a different layout and a different tent size. Mixing them — for example, using a storage shelter as accommodation — leads to overcrowding and safety issues. The same emergency tent that works for a family may be unsuitable for a medical post, so matching the disaster shelter type to its use is the first planning step.

1. Accommodation Tents

These house families or individuals. The most common size is 12 square metres (about 3.7 × 3.2 metres), which comfortably fits 3 to 4 people with beds and personal storage. Larger 20-square-metre shelters (4 × 5 metres) house 6 to 8 people and are often used for group accommodation or extended families.

The key is leaving enough walkway space between beds. A 60-centimetre aisle between two rows of beds is the minimum; 80 centimetres is better for wheelchair access and carrying supplies.

2. Medical and First-Aid Tents

Medical shelters need separate zones for triage, consultation, and recovery. A 32-square-metre tent (about 6.6 × 4.6 metres) is a common size for a field clinic, with space for 2 to 3 workstations, a patient bed, and a supply shelf. Larger 36 to 60 square metre shelters are used for field hospitals or isolation wards.

Medical tents should have a designated entrance that does not open directly into the patient area, and flooring that can be cleaned easily. Good ventilation is essential — look for tents with mesh windows or roof vents.

3. Command and Office Tents

Command shelters house coordination teams, communication equipment, and meeting space. A 20 to 30 square metre tent works for a 4 to 6 person office, with desks, chairs, and a central table. Larger 37 to 60 square metre shelters are used for joint operations centres with multiple agencies.

Cable management is important here — communication equipment, laptops, and radios all need power. Plan for a cable channel along the tent wall and a dedicated corner for the power supply.

4. Storage and Logistics Tents

Storage shelters hold food, water, blankets, clothing, and other relief supplies. Size depends on volume, but a 36 to 60 square metre tent is standard for a camp distribution point. Pallets or shelving keep supplies off the ground, and a central aisle allows forklift or hand-cart access.

Separate food storage from non-food items if possible. Keep chemicals and cleaning supplies in a dedicated corner away from food and medicine.

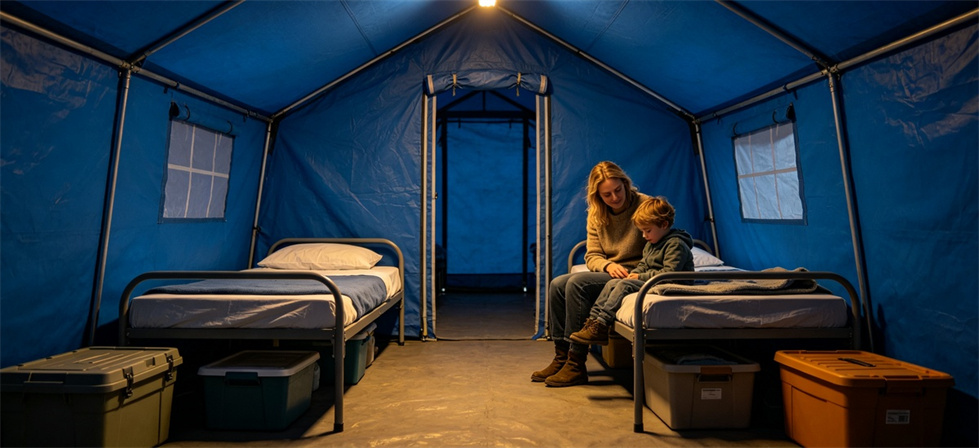

Accommodation Tent Layout: Step by Step

A well-laid-out accommodation shelter starts with measuring the usable interior space — not just the external dimensions. Relief tent walls slope inward, so the floor area you can actually use is about 10 to 15 percent less than the external footprint.

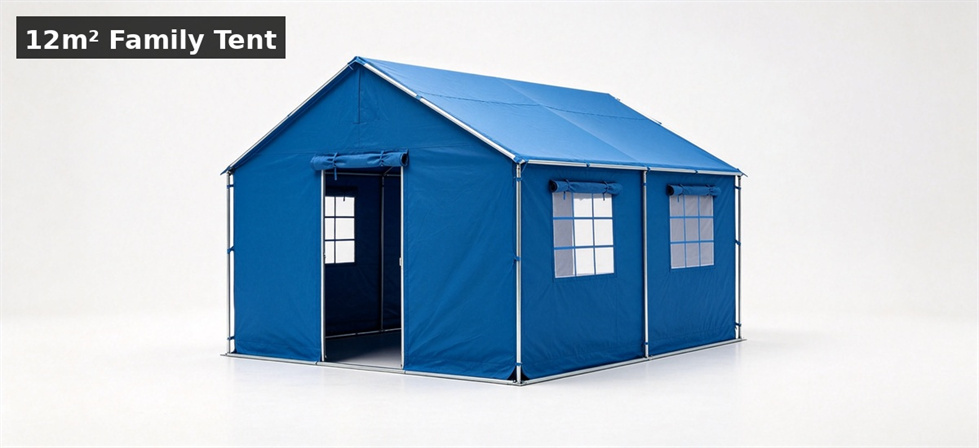

Standard 12m² Family Tent (3.7 × 3.2m)

• Sleeping area: 2 to 4 beds or sleeping mats along the two long walls
• Central aisle: 60 to 80cm wide, running the length of the tent
• Personal storage: one box or bag per person at the head of each bed
• Entrance zone: keep 50cm clear inside the door for shoes and wet items

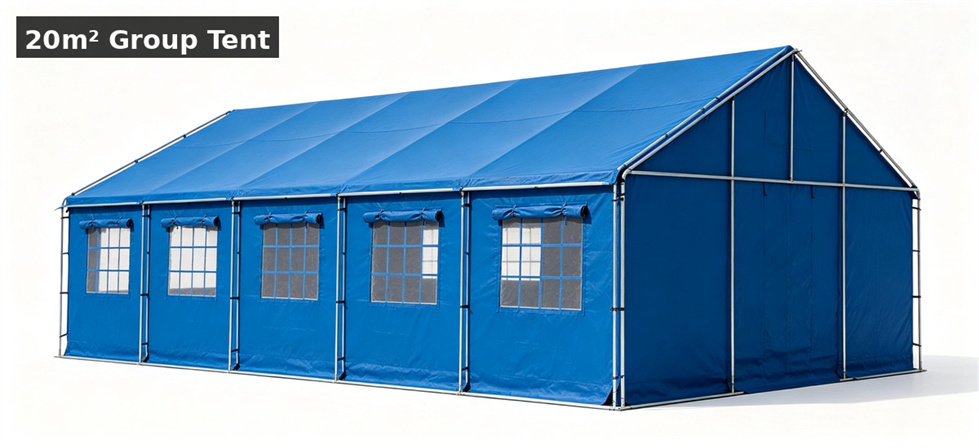

20m² Group Tent (4 × 5m)

• Sleeping area: 6 to 8 beds in two rows along the walls
• Central aisle: 80cm wide, with a small table at one end for shared items
• Separation: use hanging dividers if families need privacy
• Lighting: one central overhead light plus one near the entrance

Medical Tent Layout: What to Include

A field medical tent needs clear zones so patients move through in one flow — in through triage, out through recovery. This prevents cross-contamination and keeps the workflow efficient.

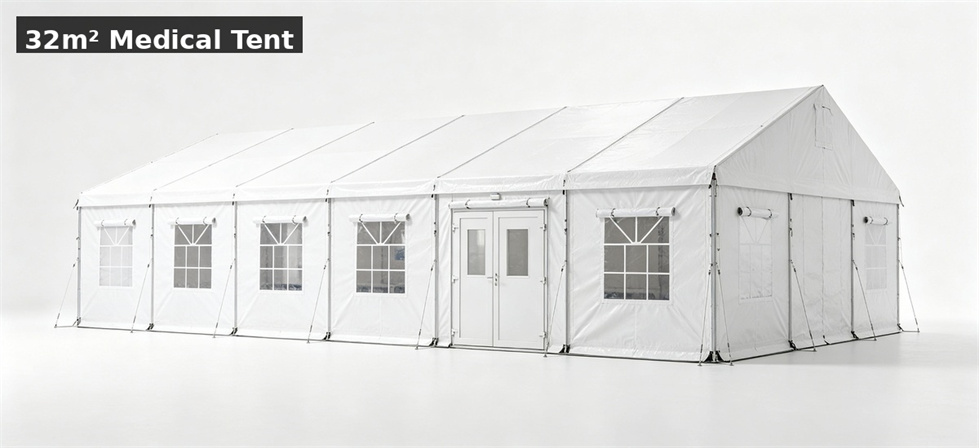

Suggested Layout for a 32m² Clinic Tent

1. Entrance / Triage zone (near the door): a chair and a table for initial assessment
2. Consultation zone (centre): 1 to 2 workstations with desks, chairs, and a medical lamp

1. Patient bed / recovery zone (far end): 1 to 2 beds with privacy curtains
2. Supply shelf (along one wall): medicines, dressings, and equipment
3. Waste corner (near exit): a lidded bin for medical waste, separate from general rubbish

Medical tents should be placed near the camp entrance but away from accommodation areas. This makes them easy to find for new arrivals and reduces noise disturbance for residents.

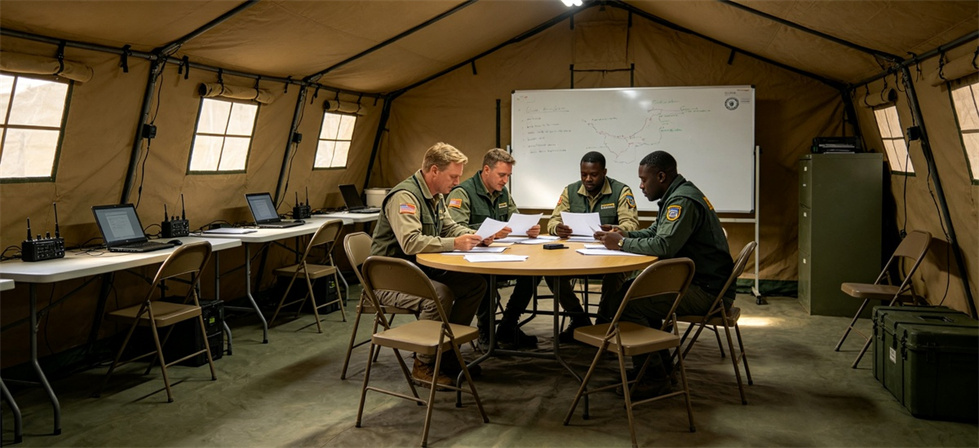

Command and Office Tent Layout

A command tent needs to support focused work and meetings at the same time. The layout should separate the work area from the meeting area so that phone calls and discussions do not distract people working at desks.

Suggested Layout for a 20m² Office Tent (4 × 5m)

1. Workstations (along one long wall): 2 to 4 desks with chairs, facing the wall to reduce distractions
2. Meeting area (centre or far end): a round or rectangular table with 4 to 6 chairs

1. Comms corner (near a window or vent): radio, laptop, and printer on a dedicated table, with cable access to the wall
2. Whiteboard or notice board (on the wall opposite the entrance): for daily updates and contact lists
3. Storage cabinet (near entrance): files, stationery, and spare equipment

For larger joint operations centres (37 to 60m²), divide the space into agency zones with a central meeting table. Each agency gets a workstation area along the wall, and the centre serves as a shared coordination space.

Storage Tent Layout: Keeping Supplies Accessible

A storage tent that is well organised saves hours during distribution. The goal is to see everything at a glance and reach any item without moving ten other boxes first.

Basic Storage Layout

• Pallets or raised flooring: all supplies at least 10cm off the ground to prevent moisture damage
• Two rows of shelving: along the long walls, with a 1-metre central aisle for carts

• Category zones: food on one side, non-food on the other; newest stock at the back, oldest at the front (first-in-first-out)
• Distribution counter: near the entrance, with a table for checking names and quantities

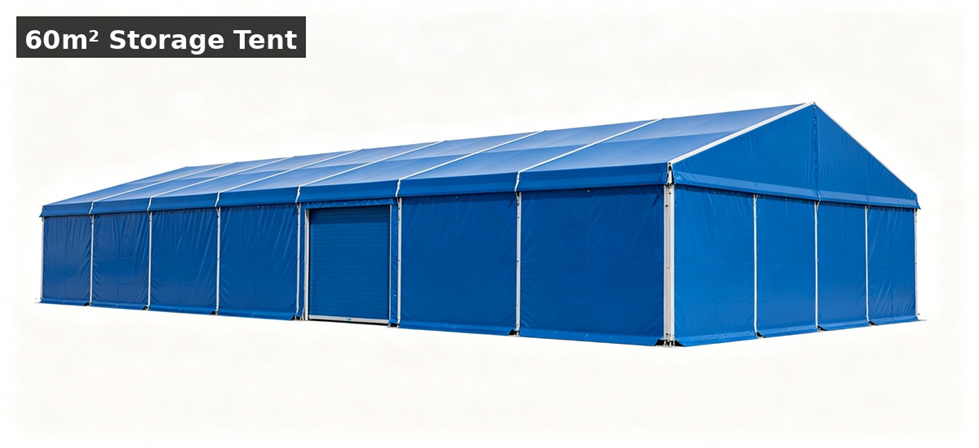

For high-volume storage, consider a 60m² tent or larger. If the camp expects more than 500 residents, two medium storage tents work better than one very large one — you can separate food and non-food, and the risk of total loss from fire or flood is reduced.

Tent Size Selection Chart

Use this chart as a starting point for relief tent selection. The right size also depends on climate (hotter climates need more space per person for air circulation), available camp ground, and budget.

Use	People / Capacity	Tent Size	Usable Area	Notes
Family accommodation	3-4 people	3.7 × 3.2m	~10-12m²	Most common relief tent size
Group accommodation	6-8 people	4 × 5m	~16-20m²	Add dividers for privacy
Large group / dormitory	10-16 people	5 × 6m	~25-30m²	Two rows of beds, central aisle
First-aid / clinic	2-3 workstations	4.6 × 6.6m	~28-32m²	Triage, consult, recovery zones
Field hospital	6-10 beds	5 × 8m or larger	~36m²+	Multiple rooms via partitions
Command / office	4-6 staff	4 × 5m	~16-20m²	Desks, meeting table, comms
Joint operations centre	10-20 staff	6 × 10m	~50-60m²	Multiple agency workstations
Small storage	Basic supplies	4 × 5m	~16-20m²	Single camp point
Large storage / distribution	500+ residents	6 × 10m	~50-60m²	Pallet racking, central aisle

Tent Structure and Accessories: What Matters

The frame and fabric determine how long a shelter lasts and how well it handles weather. Here is what to look for when comparing tent options.

Frame Type

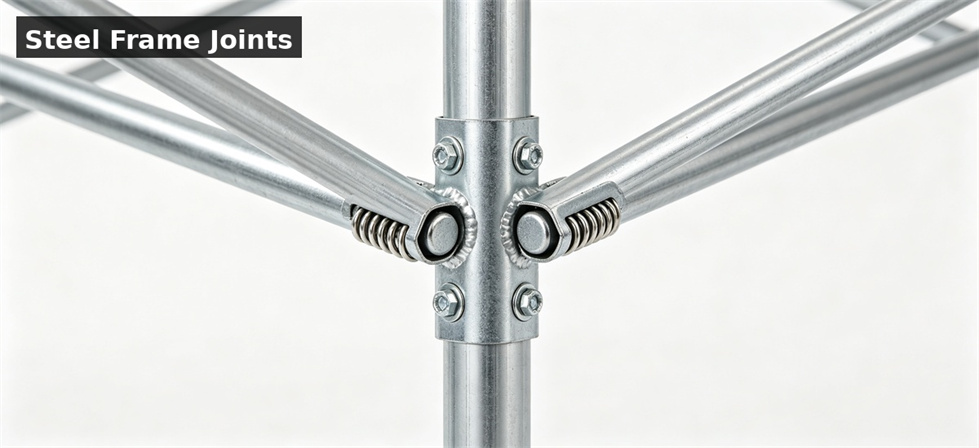

• Steel tube frame: the most common for relief tents. Galvanised steel tubes of 25mm diameter and 1.0mm wall thickness are standard. Heavier 32mm tubes are used for larger tents.
• Aluminium frame: lighter and rust-resistant, but more expensive. Good for tents that need frequent relocation.
• Quick-deploy frame: pre-connected frames that unfold in minutes. Useful for emergency response but less configurable for custom layouts.

Fabric

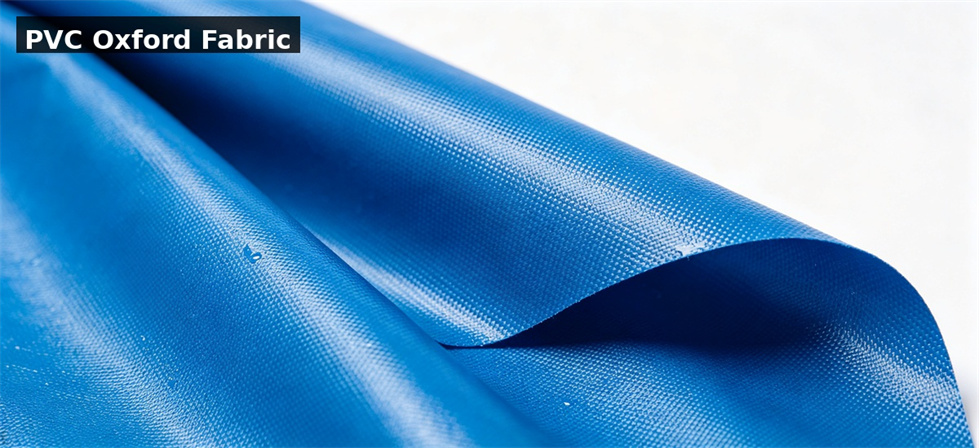

• PVC coated polyester or oxford: waterproof, durable, and easy to clean. 350 to 600 g/m² is the common weight range for relief tents, with a waterproof rating of 2000 to 5000mm hydrostatic head. Higher ratings handle heavy rain better but add weight.
• Cotton or canvas: breathable and comfortable in hot weather, but heavier and slower to dry. Less common for modern relief use.
• Inner lining: some tents include a removable inner tent for insulation and privacy. Useful in cold climates.

Useful Accessories

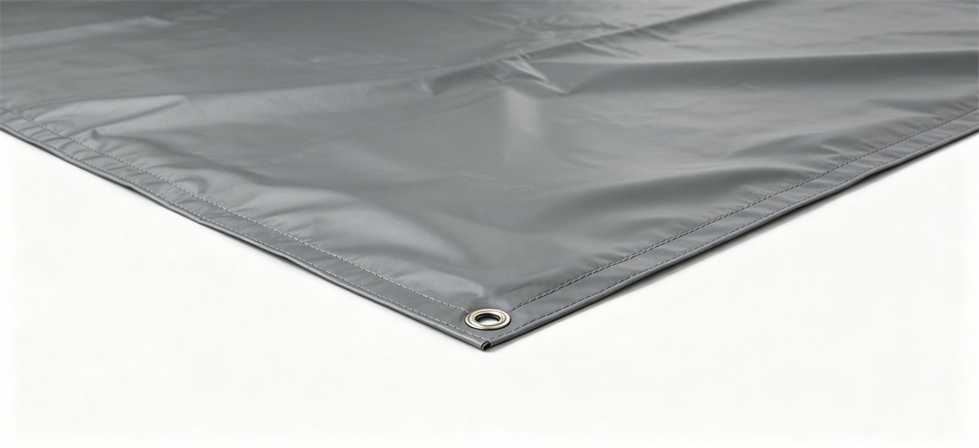

• Ground sheet / floor: essential for accommodation and medical tents. Prevents moisture and insects from entering.

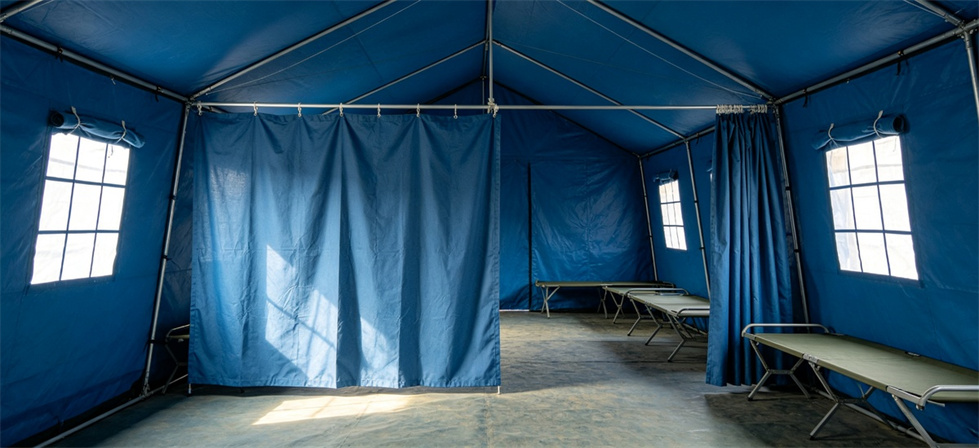

• Partitions / dividers: create separate rooms inside a large tent. Useful for medical privacy or family separation.

• Extra doors and windows: improve ventilation and allow separate entry/exit flows in medical tents.
• Lighting and cable ports: some tents have reinforced cable entry points to avoid damaging the fabric.

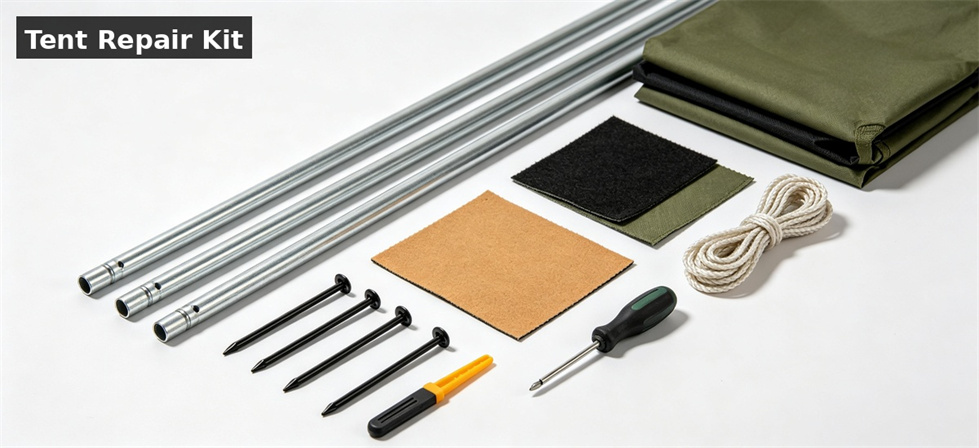

• Repair kit: every tent should ship with spare poles, fabric patches, replacement pegs, guy rope, and a small tool set. Check that the kit matches your tent model — generic patches may not adhere to PVC fabric.

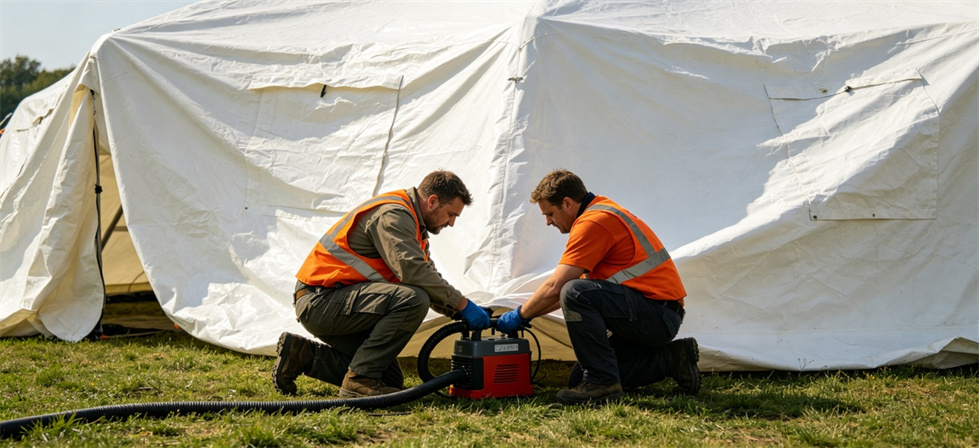

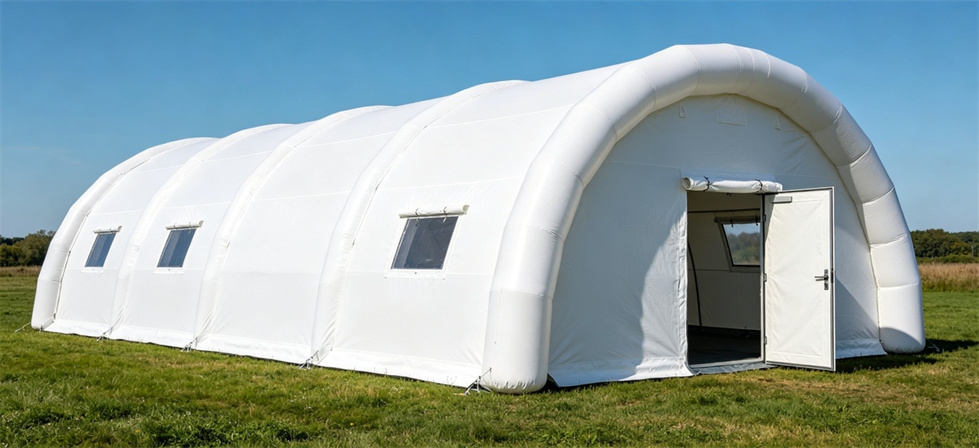

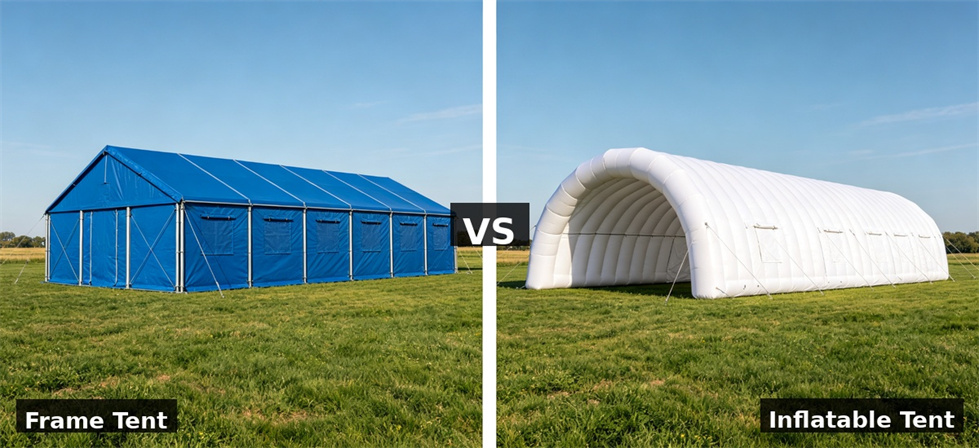

Inflatable Tents for Rapid Deployment

For emergency response where speed is critical, inflatable relief tents use air-filled tubes instead of metal frames. They can be set up by 2 people in 5 to 10 minutes using a pump. Sizes range from 10m² to 60m². They are lighter to transport but require a pump and are more susceptible to punctures — always carry a repair patch kit.

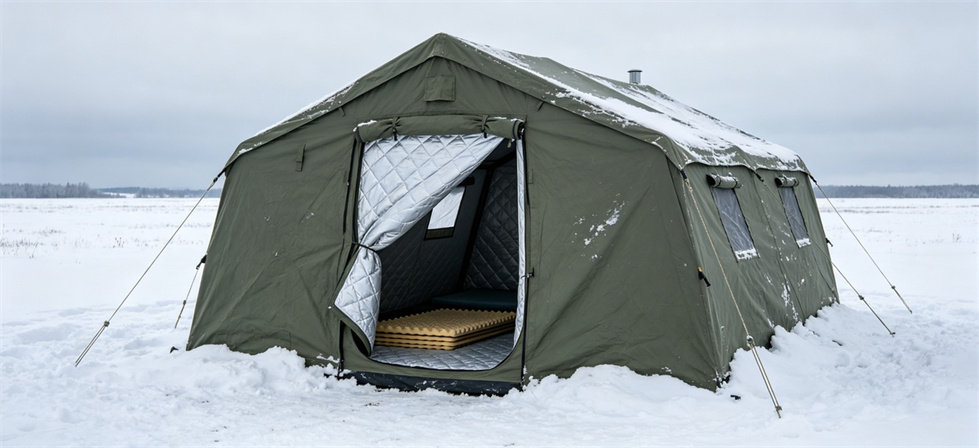

Cold Climate Considerations

In winter or cold climates, choose tents with an inner lining (cotton or polyester fleece) to reduce heat loss. Add a ground insulation layer — foam mats or wooden pallets under sleeping areas. Ensure the tent has a stove jack or safe heating option if temperatures drop below freezing. Ventilation remains important even in cold weather to prevent condensation and carbon monoxide buildup.

Site Conditions That Affect Layout

The best shelter layout in the world will not work if the site is not prepared. Check these factors before finalising your tent order and camp plan.

1. Ground type: Soft soil allows standard tent pegs; hard ground or concrete needs weighted bases or water ballasts. Rocky ground may require drill-in anchors.
2. Slope: Tents need level ground. A slope of more than 2 degrees causes discomfort and drainage problems. If the site is sloped, terrace it or choose a different location.
3. Drainage: Dig shallow drainage channels around each tent if the site is prone to flooding. Avoid low-lying areas that collect water.

1. Wind exposure: Open areas need stronger tents and extra guy ropes. If possible, position tents with the door facing away from the prevailing wind.
2. Sun exposure: In hot climates, place accommodation tents near existing shade trees if available. Consider adding sunshade canopies between tent rows.
3. Space between tents: Leave at least 2 metres between accommodation tents for fire safety and walkways. Medical and storage tents should be 5+ metres from accommodation. The 2-metre rule is a widely used humanitarian camp standard — it allows one person to pass carrying supplies and gives fire crews room to work if a tent catches fire.

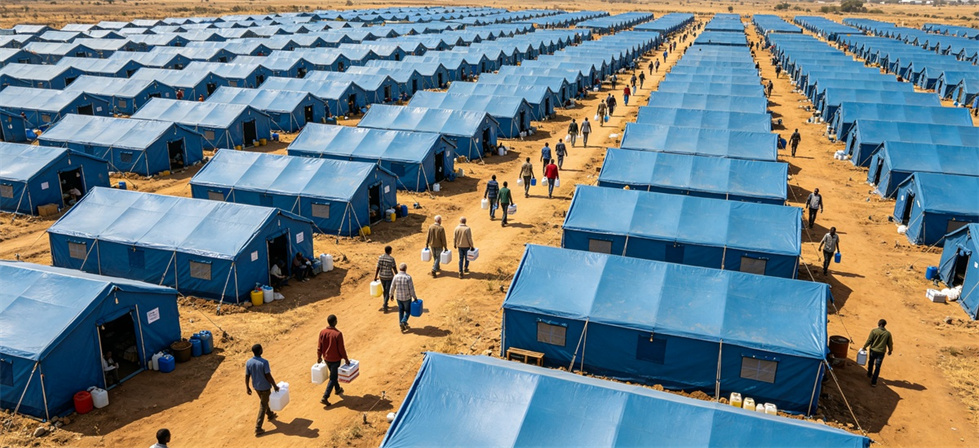

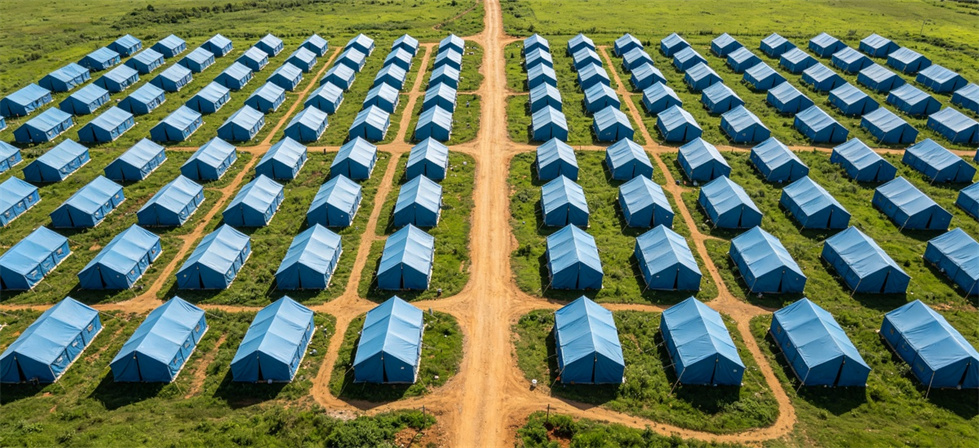

Camp-Level Layout Planning

Beyond individual tent layouts, the overall arrangement of the refugee camp matters. A well-organised humanitarian shelter camp reduces confusion, improves safety, and makes distribution more efficient.

Basic Camp Zoning

• Accommodation zone: the largest area, with tents in parallel rows separated by 2-metre walkways. Rows should run perpendicular to the prevailing wind for better ventilation.
• Facilities zone: toilets, showers, and water points placed downwind of accommodation, at least 30 metres away to prevent odour and contamination.
• Distribution zone: storage tents and a distribution counter near the camp entrance, separate from living areas to control foot traffic.

• Medical zone: near the entrance for easy access by ambulances, but separated from accommodation for infection control.
• Command zone: central location with good visibility, near the main entrance.
•


How Much Land Do You Need?

A common planning estimate is 30 to 45 square metres of total camp space per person. This includes the tent footprint, walkways, roads, facilities, and green space. For 100 people, plan for 3000 to 4500 m² (about 0.3 to 0.45 hectares). Breakdown: accommodation and walkways use about 15 m²/person, facilities and distribution use 8 m²/person, roads and buffer zones use 7 to 22 m²/person.

Roads and Paths

Main camp roads should be at least 3 metres wide to allow vehicle access for supply trucks and ambulances. Secondary paths between tent rows should be 1.5 to 2 metres wide. Mark roads with stones or rope so they stay clear during rain.

Tent Numbering and Identification

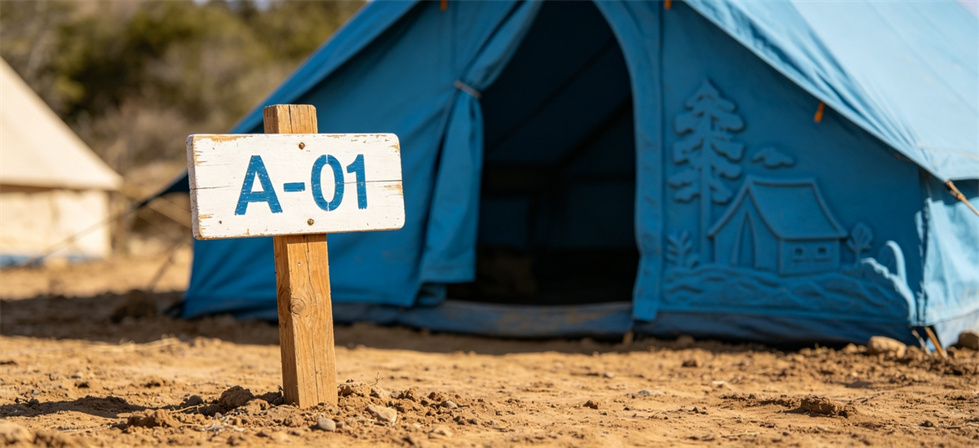

Label each relief tent with a clear number or code — for example, A-01 for the first tent in row A. This helps residents find their shelter, aid workers locate specific families, and maintenance teams track repairs. Use weather-resistant labels or paint on wooden stakes near each entrance.

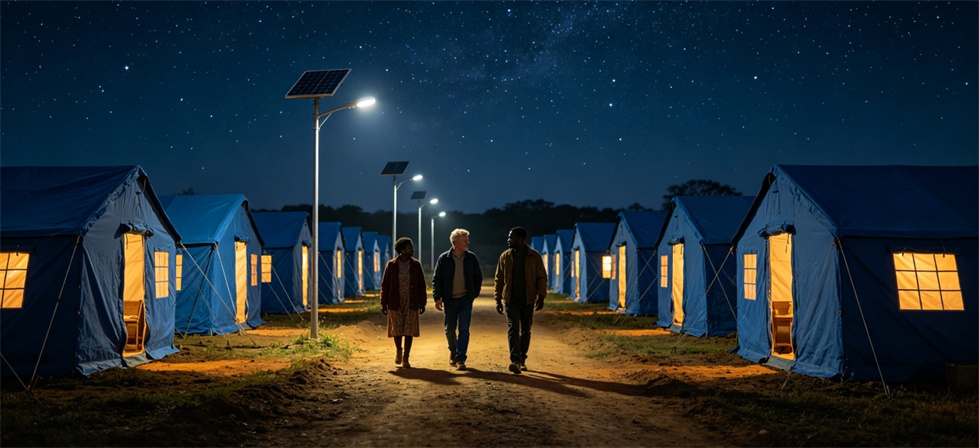

Lighting and Power

Plan for lighting along main paths and at distribution points. Solar-powered street lights are the most common option for relief camps. For medical and command tents, arrange for a generator or solar panel setup with cable runs along tent walls. Keep all electrical cables elevated or covered to prevent tripping and water damage.

Six Key Points to Confirm Before Ordering

These are the details that make the difference between a relief tent that works and one that causes problems on site.

1. Usable interior dimensions: not just the external size. Ask for the floor area inside the walls.
2. Frame material and thickness: confirm the steel tube diameter and wall thickness. Thinner tubes bend under snow load or high wind.
3. Fabric weight and waterproof rating: ask for the g/m² weight and the hydrostatic head rating in millimetres.

1. Included accessories: does the price include a ground sheet, partitions, repair kit, and storage bag? Get an itemised list.
2. Setup time and crew size: how many people are needed, and how long does it take? This affects your deployment plan.

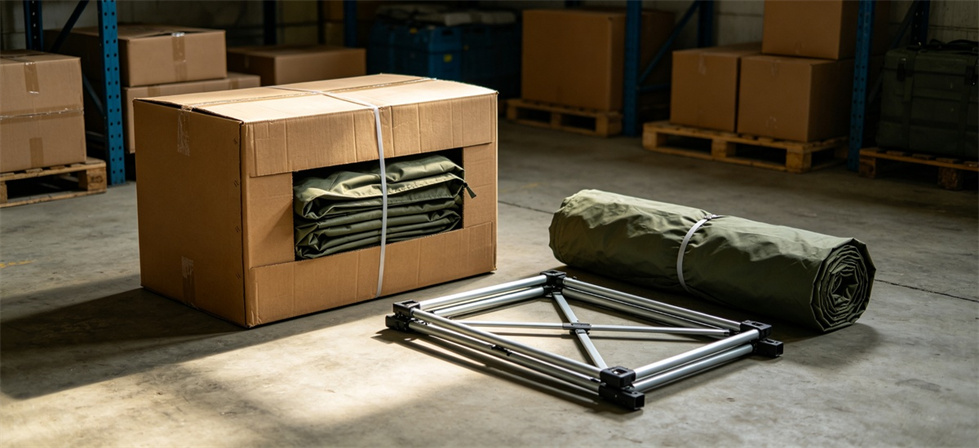

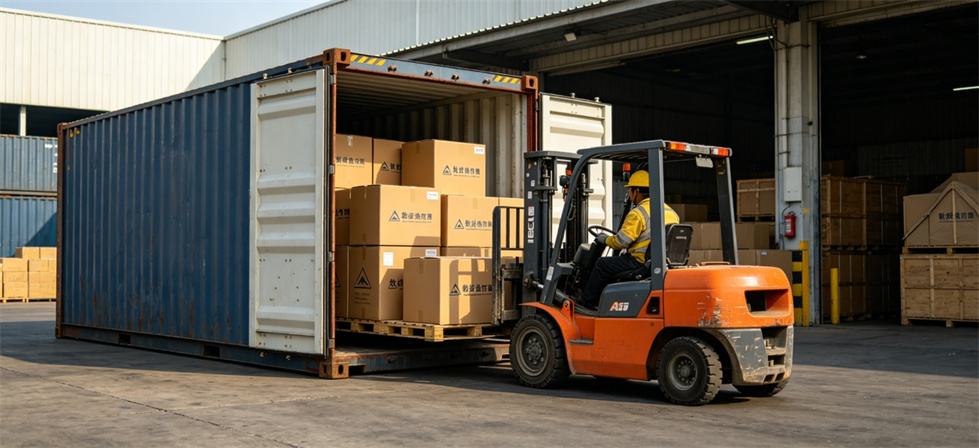

3. Packed size and weight: critical for transport. Know how many tents fit in a 20-foot container and what each carton weighs.

Common Layout Issues and How to Solve Them

Issue: Tent feels smaller than expected

Cause: The external dimensions were used for planning, but the sloping walls reduce usable space. Solution: Always plan based on interior floor dimensions. If in doubt, go one size up — the extra space is worth it for comfort and safety.

Issue: Medical tent has no privacy

Cause: Open-plan layout with no dividers. Solution: Order tents with internal partition walls, or use hanging fabric dividers. Place the recovery zone at the far end of the tent, away from the entrance.

Issue: Storage tent is disorganised

Cause: No shelving or aisle planning. Solution: Install simple metal or wooden shelving along the walls. Mark each zone with signs. Keep a central aisle clear for carts. Use the first-in-first-out rotation system.

Issue: Tents are too close together

Cause: Trying to fit too many tents on a small site. Solution: Prioritise fire safety — at least 2 metres between accommodation tents. If space is tight, reduce the number of tents per row and add more rows rather than squeezing them together.

Issue: Tent floods when it rains

Cause: Poor site drainage or tent placed in a low spot. Solution: Dig a shallow drainage channel around each tent before the rainy season. Raise the tent floor with pallets or a wooden deck. Avoid low-lying ground.

Issue: Tent is hot and stuffy inside

Cause: Insufficient ventilation — doors and windows closed, no roof vents. Solution: Keep opposite doors or windows open for cross-ventilation. Choose tents with mesh windows and roof vents. In hot climates, add a sunshade canopy over the tent roof to reduce direct sun heating. Position tents so the prevailing wind flows through the openings.

Working With a Supplier: What to Ask

Once you have a clear layout plan, the next step is finding a supplier who can deliver the right tents. Having these details ready will help you get an accurate quote and avoid surprises.

• How many tents do you need, and what sizes?
• What is each tent used for (accommodation, medical, storage, command)?
• What climate will they be used in (hot, cold, rainy, windy)?
• Do you need specific colours, logos, or markings?
• What is your delivery timeline and destination?
• Do you need accessories like ground sheets, partitions, or repair kits?

At YRF Textile, we supply a range of relief tents from 12m² family tents to 60m² storage and command tents. All models use galvanised steel frames and waterproof PVC or oxford fabric. We also offer emergency frame tents and inflatable tents for rapid deployment. We can help you match tent sizes to your camp layout plan and provide packing information for container shipping. If you are planning a relief camp and need guidance on tent selection, send us your layout plan and we will recommend the right mix of sizes and accessories.

RFQ Checklist: What to Include in Your Tent Enquiry

Once your layout plan is ready, use this checklist to write a clear request for quotation (RFQ). A well-structured RFQ helps suppliers quote accurately and avoids misunderstandings later.

1. Quantities and sizes: how many tents of each size (12m², 20m², 32m², etc.)
2. Intended use: accommodation, medical, command, storage, or mixed use
3. Climate conditions: expected temperature range, rainfall, wind speed
4. Frame and fabric preferences: steel or aluminium frame, PVC or oxford fabric, weight preference

1. Accessories needed: ground sheets, partitions, repair kits, storage bags, extra pegs
2. Customisation: colour, logo printing, tent labels or numbering
3. Packing requirements: carton size, weight limits, palletisation needs
4. Delivery destination and timeline: port of discharge and required delivery date
5. Certification needs: any test reports or compliance documents required by your organisation

Send this information to suppliers and ask for an itemised quote that lists included components, optional extras, and excluded items. This makes it easy to compare quotes on a like-for-like basis.

Conclusion

A good relief tent layout starts with understanding what each shelter will be used for, then matching the size and accessories to that use. Accommodation needs beds and walkways; medical needs zones and privacy; storage needs shelving and access; command needs workspace and cable management. Confirm the usable interior dimensions, frame quality, and included accessories before ordering, and prepare the site with drainage and spacing in mind.

Take the time to plan the relief tent layout before deployment, and your camp will function more smoothly for everyone who lives and works there.

Frequently Asked Questions

What size tent do I need for a family of 4?

A 12m² tent (about 3.7 × 3.2m) is the standard size for 3 to 4 people. It fits 2 to 4 beds with a central aisle and personal storage. For a family of 5 or more, choose a 20m² tent (4 × 5m).

How many people can fit in a 20m² tent?

A 20m² tent comfortably fits 6 to 8 people in two rows of beds with a central aisle. If you need more space per person — for example in hot climates where air circulation is important — plan for 4 to 6 people.

What is the difference between a relief tent and a regular camping tent?

Relief tents (also called emergency tents or disaster shelters) are built for long-term use (months to years), with stronger steel frames, thicker waterproof fabric, and larger interior space. Camping tents are lightweight and designed for short trips. Relief tents also come in standardised sizes that match humanitarian agency specifications.

How long does it take to set up a relief tent?

A 12m² family tent takes 2 to 4 people about 15 to 30 minutes. Larger 30 to 60m² tents take 6 to 8 people 30 to 60 minutes. Quick-deploy frame tents can be set up in under 10 minutes but are less configurable.

Do relief tents come with flooring?

Not always. Some models include a built-in ground sheet; others require a separate floor. Always confirm whether flooring is included. For accommodation and medical tents, a ground sheet is essential to keep out moisture and insects.

Can I customise the colour or add logos?

Yes. Most suppliers offer custom colours and logo printing for orders above a minimum quantity. Standard relief colours are white, blue, green, and orange. Allow extra production time for custom colours or printing.

How should I store tents when not in use?

Ensure tents are completely dry before packing — moisture causes mould and fabric degradation. Store in a cool, dry place away from direct sunlight. Keep them off the ground on pallets or shelving. Inspect annually for damage and repack if needed.

What is the lifespan of a relief tent?

With proper care, a good-quality steel-frame relief tent lasts 3 to 5 years in regular use. Fabric degrades faster in intense sunlight — expect 2 to 3 years in tropical climates. Frames can last much longer if stored dry and checked for rust.
